147150 - GZP DF Front hub FXD00-03 XL00-07

NOTE: The images shown are for reference only, the actual product may differ.
Therefore please always read the description or read on the corresponding catalog page.

Enlarge article image    Enlarge article image

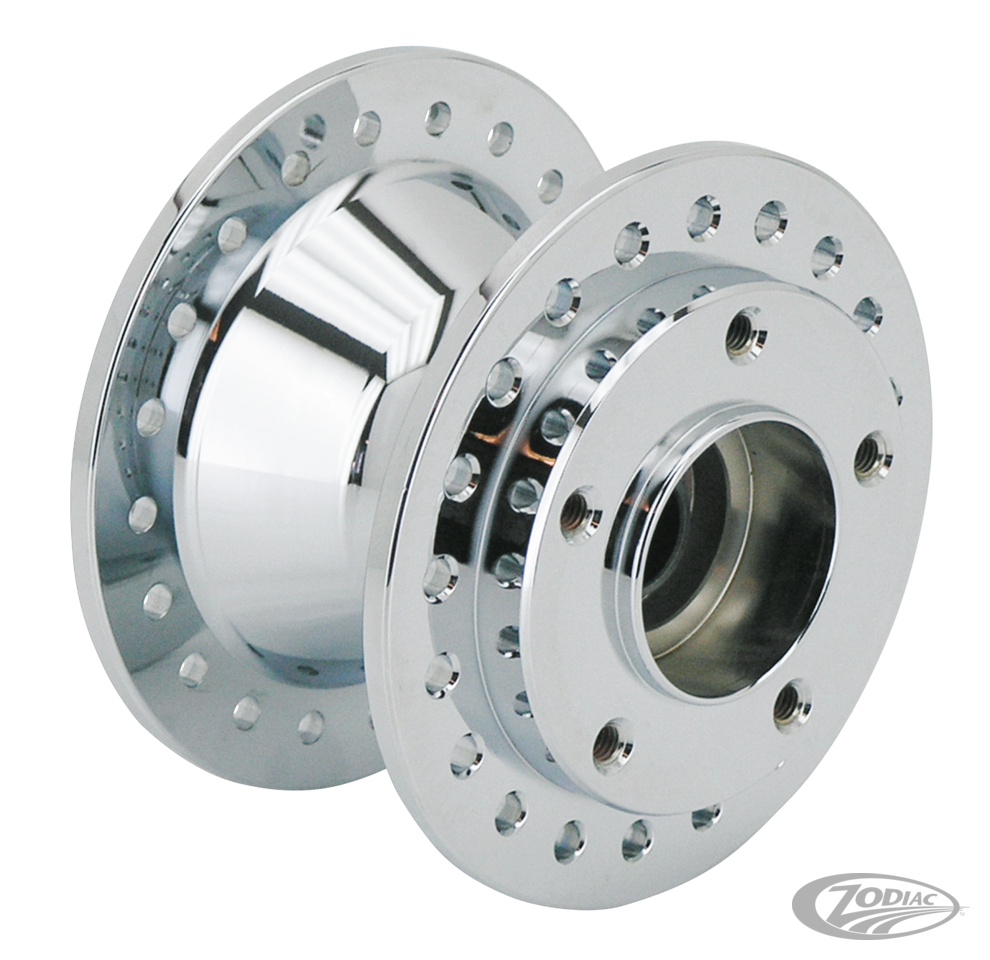

GZP DF Front hub FXD00-03 XL00-07

Article-No.: 147150
333,02 €

Part Description

Front wheel hubs for Sportster, Sportster 2000-2007. Alloy chrome for single or dual disc, Genuine Zodiac. Order 2 pcs. 3/4" wheel axle bearings of ZPN 732900 and a ZPN 789360 bearing spacer separately

Text excerpt from the catalog:

A wide selection of stock style hubs for most applications. Unless otherwise indicated all hubs come with bearings, seals and bearing spacer installed. Wheels for ABS applications feature the special ABS bearings, but not the ABS pick up sensor. Hubs for models thru 1999 take 2" inner diameter discs and pulleys. Hubs for 2000 to present take 2.22" inner diameter discs and pulleys. All have the standard Harley 5-hole bolt pattern on a 3 1/4" (82.6mm) circle.

Spezification

Article-No.:
147150
Manufacturer/Distribution:
Zodiac Genuine / Zodiac International
Packaging Unit:
1
OEM Referenz:
43629-00A
Catalog page:
796
