Part Description

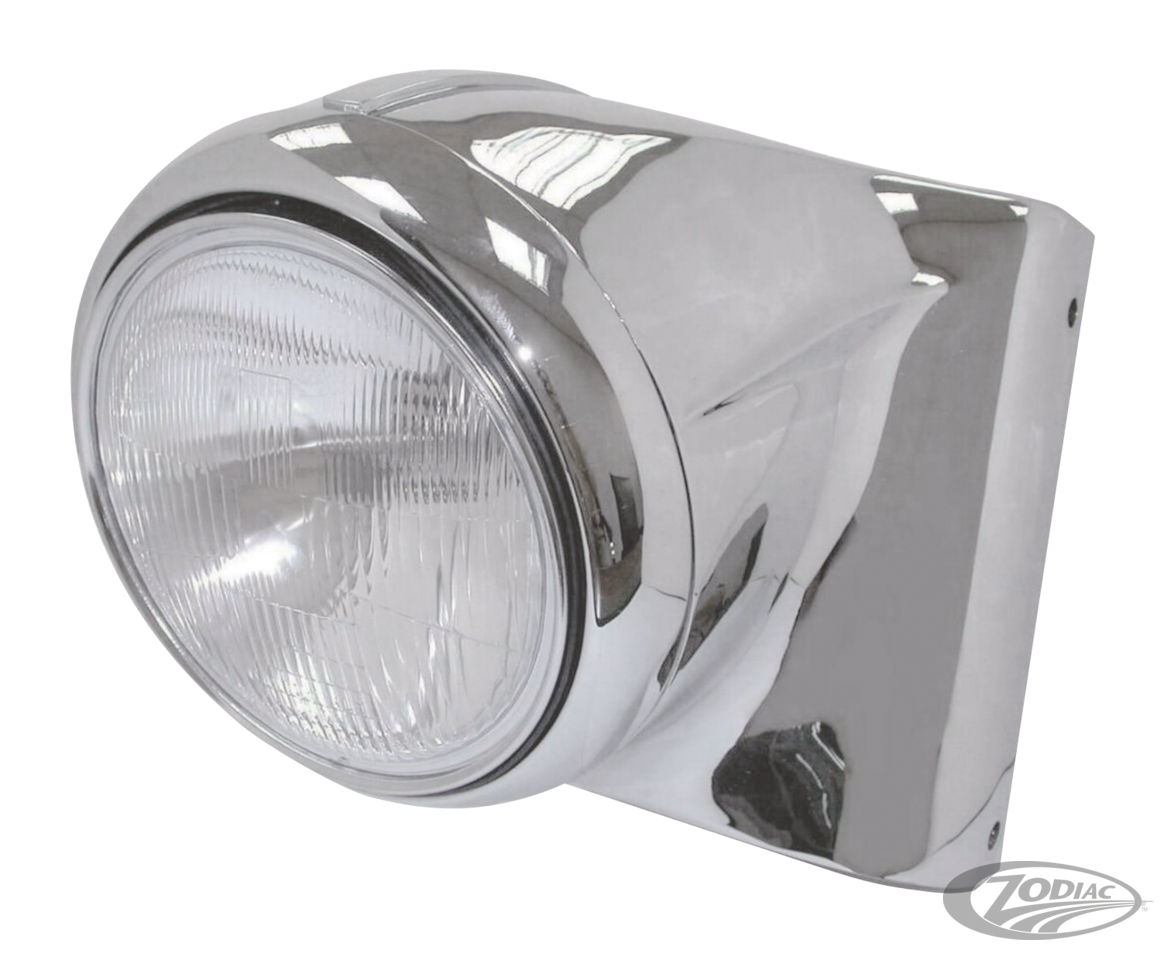

Chrome headlight housing conversion kit with hardware and DOT approved H4 unit
Text excerpt from the catalog:
Convert your Heritage Softail or Fat Boy from the stock headlight "tins" to the later model headlight housing with this complete kit. It includes the chrome plated two-piece aluminum headlight housing with all necessary mounting brackets, headlight bucket, chrome slider covers as well as covers for the lower triple tree and handlebar risers. This stylish kit bolts directly to the existing Original Equipment triple trees on all Heritage Softail and Fat Boy 1986-2006 with 1" handlebars. Bikes with 1 1/4" handlebars, 2007-2017 Fat Boy and all 2009-2017 Softail require modifications. A wider head lamp trim ring that makes the headlamp housing even look longer is available separately.
Note: For bikes with passing lamps and/or a windshield hardware kit ZPN 730583 must be ordered separately. However, modification of the passing lamp brackets may still be required. Bikes equipped with a windshield that is bolted to the side of the front fork may require early style windshield brackets. On most windshields the headlight cut-out must be enlarged to accept the nacelle. Bikes equipped with risers longer than 1.5" must change to low risers or can not install the handlebar clamp cover.
