Part Description
Fat Bubba triple tree kit 3dgr (TÜV)
Text excerpt from the catalog:

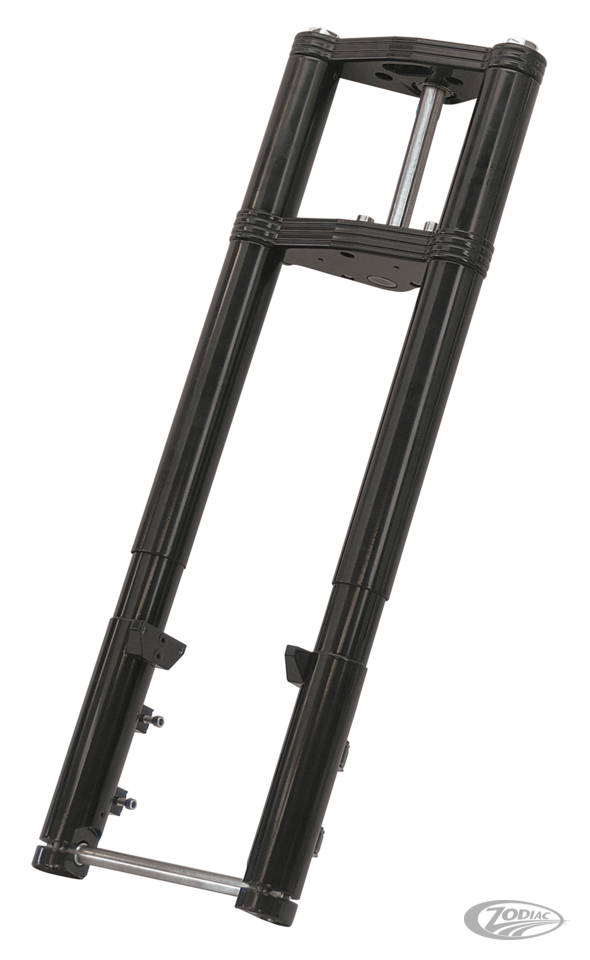

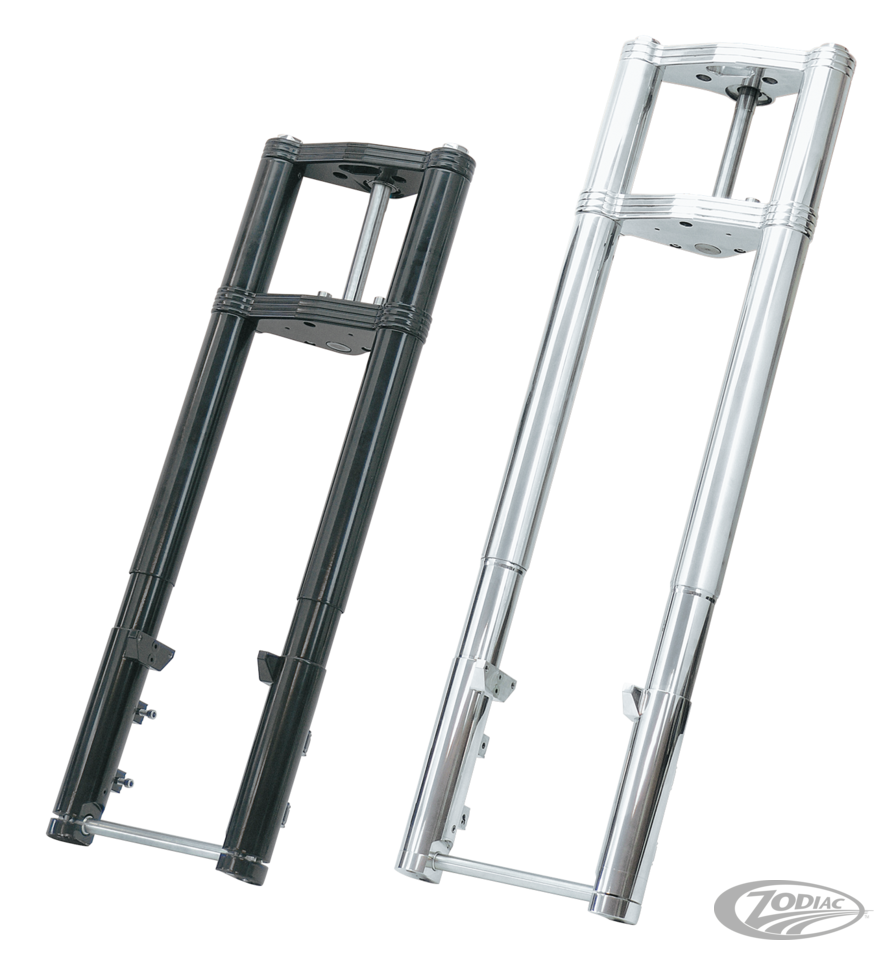

These "Made in Europe" Billet Aluminum Forks are something else. They feature massive Triple Tree clamps, large diameter bottom sliders and covers, fully covered fork tubes, and Hidden Axle mount. This Zodiac exclusive Billet aluminum front fork is un-compromised in price and quality. No matter if you are going to use the Fat Bubba forks as stock replacement or for your Custom Project, it will provide the Fat look wanted by today's Custom builders. Triple tree, slider covers and sliders are machined from billet aluminum and are available in mirror like, highly polished, or black finish. The upper triple tree clamp is 1 1/8" (29mm) thick, the lower triple tree clamp measures 1 5/16" (34mm). The fork slider covers and bottom legs have a very impressive diameter of 2 3/8" (60mm). The lower fork sliders feature fender brackets, as well as dual caliper mount. Conversion brackets that take 1984-1999 style OEM or aftermarket brake calipers are available but must be ordered separately. Other conversion brackets must be custom made. The front wheel axle has a hidden mount for extra sleek looks. Forks are available in +3", +4", +6", + 8", +12", +14" and +16" over stock FL length (actual fork leg length is also listed) and with 0, 3, and 6 degrees raked triple tree. These Fat Bubba forks come complete with 3 different fork stops to work with almost any stock or aftermarket frame. Installation on 2006-2017 Dyna requires the separate purchase of a neck post & spacer kit, ZPN 600129 for polished forks or ZPN 600130 for black forks. A bottle of fork oil is included with each set. Note: Length is measured from the underside of the upper triple to the center of the wheel axle. 4" over stock FL is the same as stock FXWG. Fork oil change: Per fork leg 300 cc 20W20 Spectro Type-E Light fork oil for street use, or 300 cc SAE 40 Extra Heavy Duty Spectro oil for high performance and racing use.
