Part Description

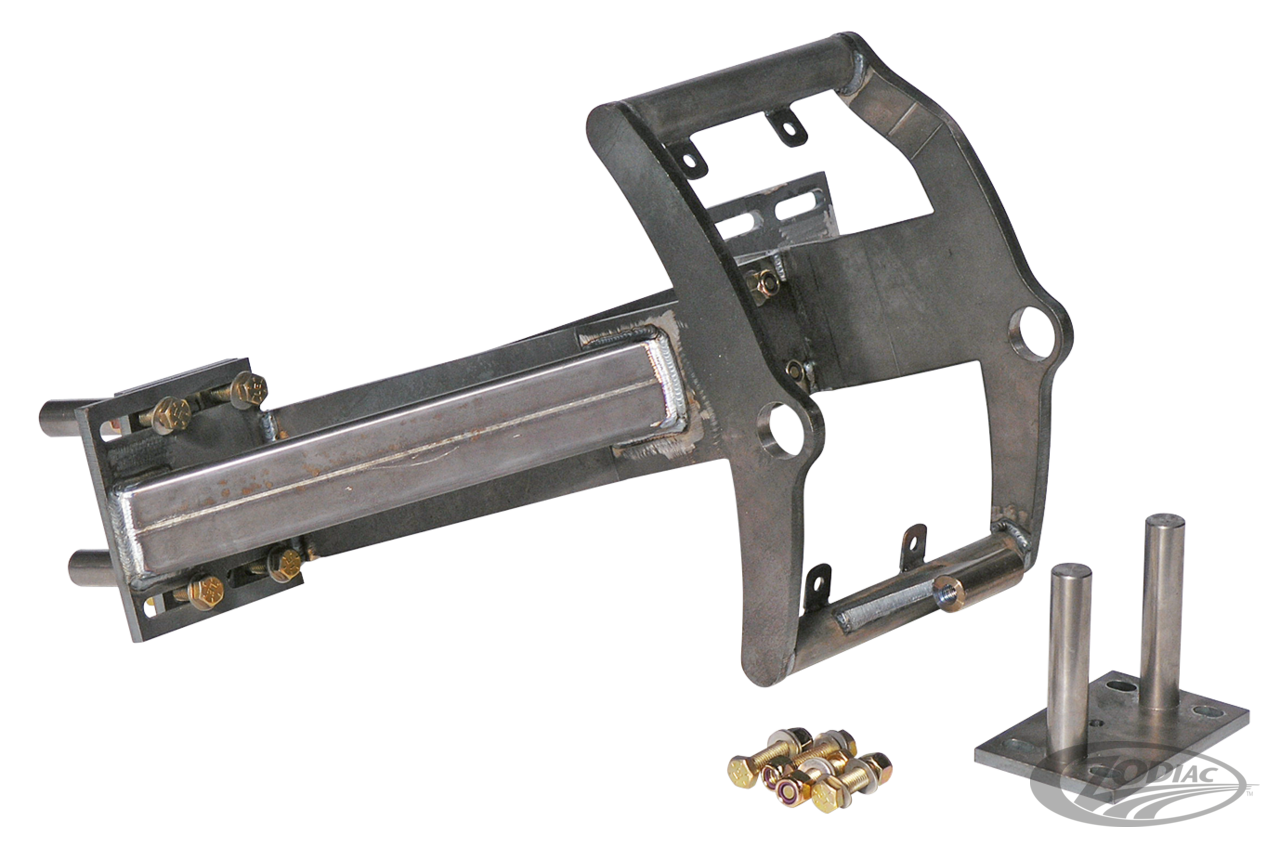

Swing arm for 1986-1999 Touring
Text excerpt from the catalog:

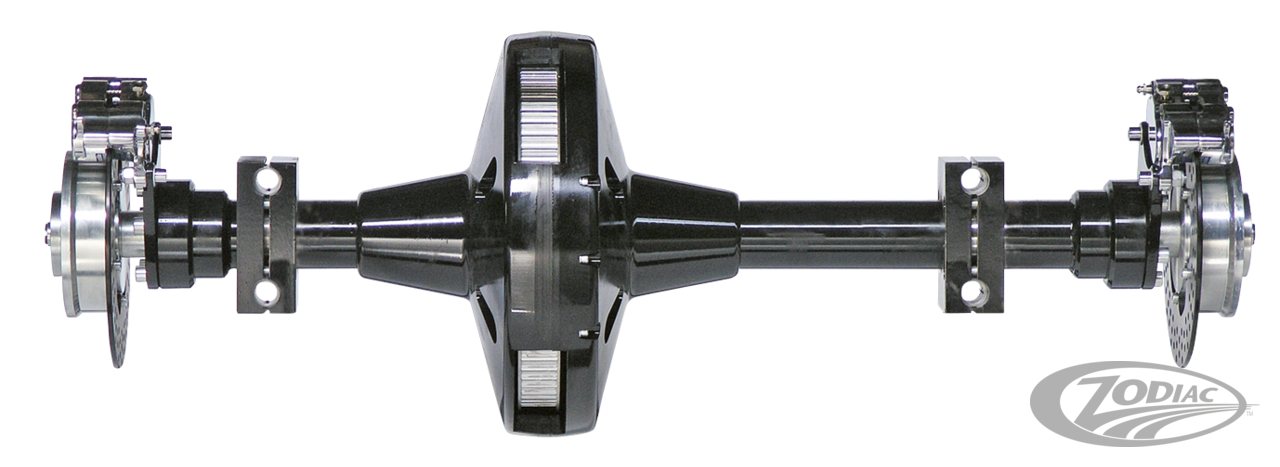

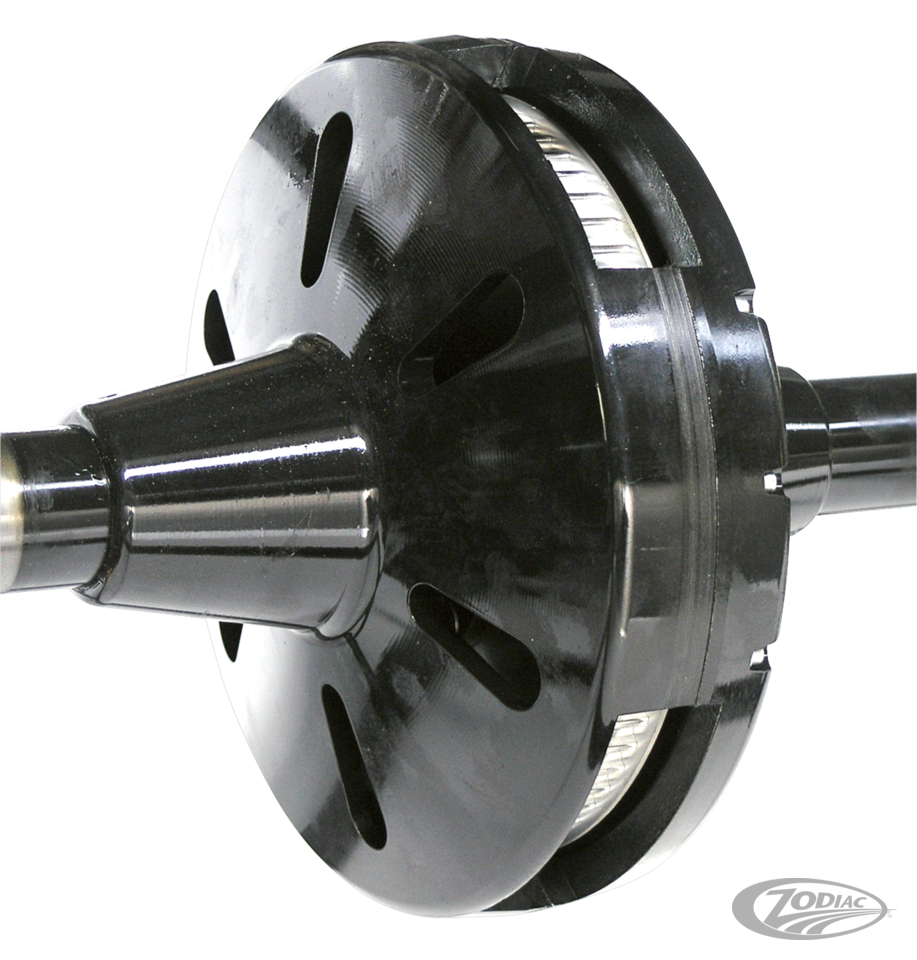

The installation of these conversion kits in Softail or Touring models requires no modification to stock mounting points on the frame. As this is a straightforward bolt in conversion you can convert back from trike to two-wheeler at any time in the future. Swing arms are available for Sportster, Touring, 1984-1999 Evolution Softail as well as the 2000 to present Twin-Cam Softail. Will also fit most OEM styled aftermarket frames. No offset of the primary and/or transmission is needed, but as trikes in general require more responsive steering as a two-wheeler, the use of 3 degrees raked triple trees is strongly recommended. Trike rear axles can also be used to build a trike with your own frame. Swing arms feature: •"No Flex" wide beam styling •Bolt-on construction •Uses stock or aftermarket shock absorbers Rear axles feature: •Bolt-on construction •Black finished CNC machined billet aluminum differential housing •70 tooth 1 1/8" belt pulley or 51 tooth 530 series chain sprocket •Slip differential •Chrome brake calipers •Drilled stainless steel disc brake rotors •Accepts 4 3/4" (120.6mm) pitch 5-hole wheels as used on many American cars •Over all width (without wheels) 40 1/2" (103 cm)
