730184 - GZP Trike Swingarm FLH/T00-08

NOTE: The images shown are for reference only, the actual product may differ.
Therefore please always read the description or read on the corresponding catalog page.

Enlarge article image    Enlarge article image

GZP Trike Swingarm FLH/T00-08

Article-No.: 730184
1.639,15 €

Part Description

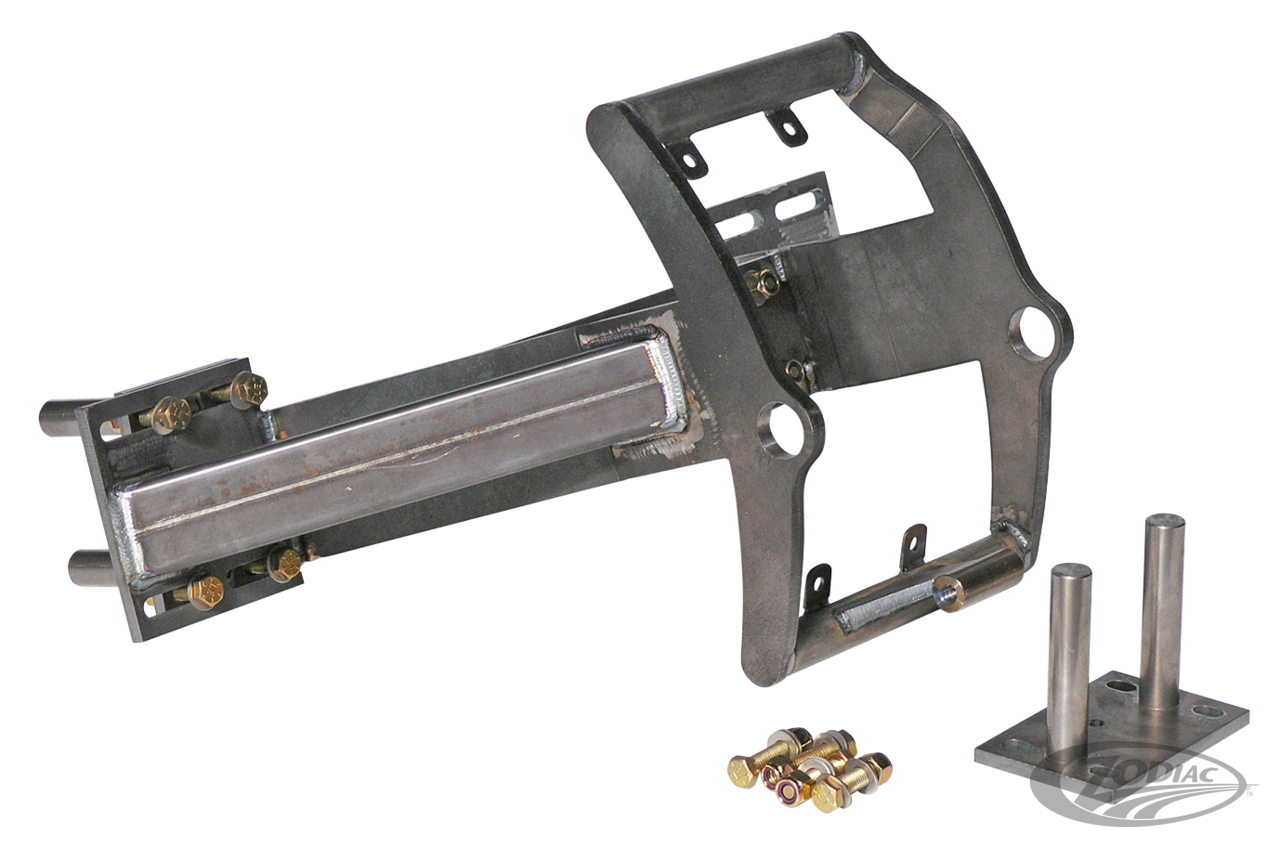

Swing arm for 2000-2008 Touring

Text excerpt from the catalog:

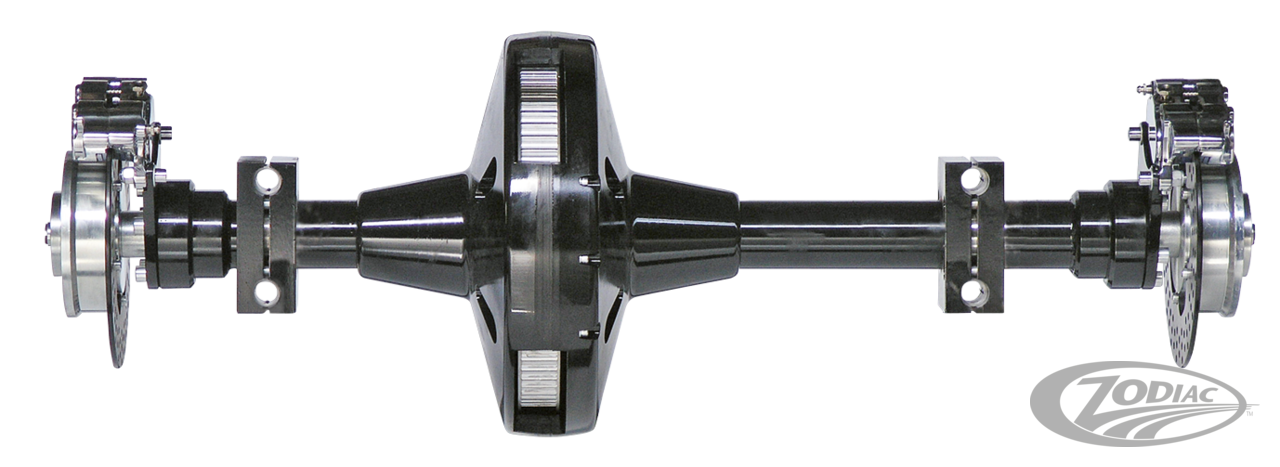

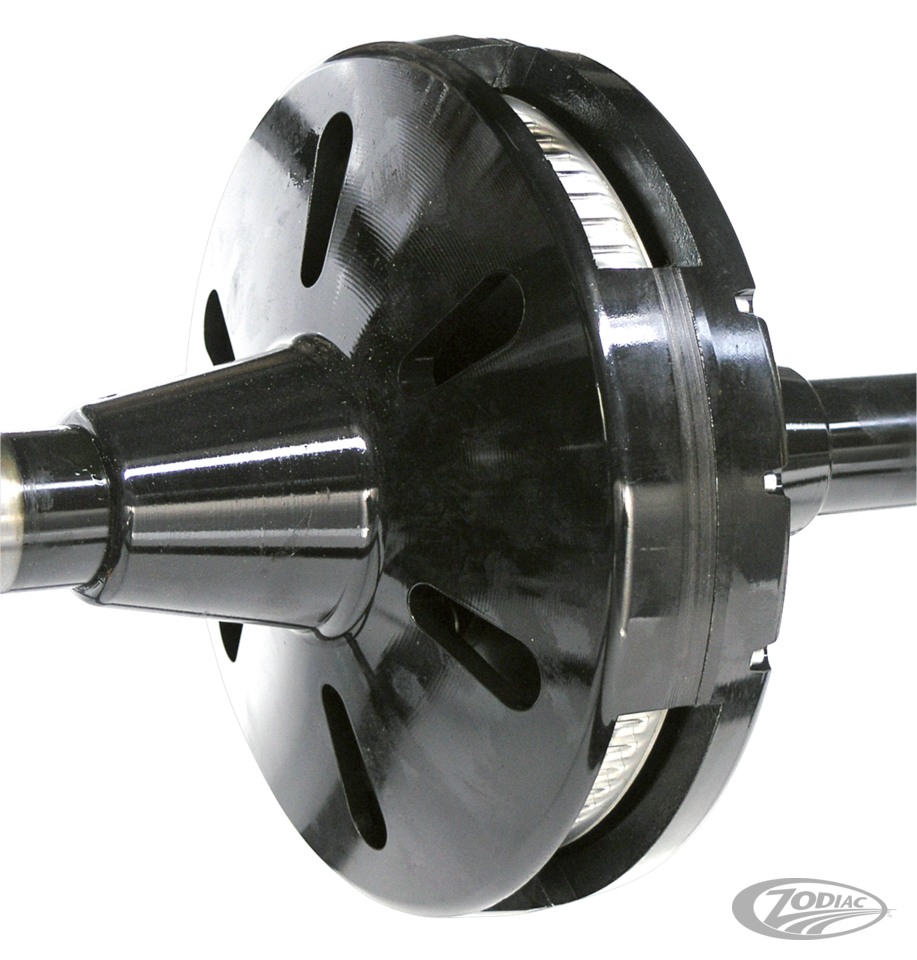

The installation of these conversion kits in Softail or Touring models requires no modification to stock mounting points on the frame. As this is a straightforward bolt in conversion you can convert back from trike to two-wheeler at any time in the future. Swing arms are available for Sportster, Touring, 1984-1999 Evolution Softail as well as the 2000 to present Twin-Cam Softail. Will also fit most OEM styled aftermarket frames. No offset of the primary and/or transmission is needed, but as trikes in general require more responsive steering as a two-wheeler, the use of 3 degrees raked triple trees is strongly recommended. Trike rear axles can also be used to build a trike with your own frame. Swing arms feature: •"No Flex" wide beam styling •Bolt-on construction •Uses stock or aftermarket shock absorbers Rear axles feature: •Bolt-on construction •Black finished CNC machined billet aluminum differential housing •70 tooth 1 1/8" belt pulley or 51 tooth 530 series chain sprocket •Slip differential •Chrome brake calipers •Drilled stainless steel disc brake rotors •Accepts 4 3/4" (120.6mm) pitch 5-hole wheels as used on many American cars •Over all width (without wheels) 40 1/2" (103 cm)

Spezification

Article-No.:
730184
Manufacturer/Distribution:
Zodiac Genuine / Zodiac International
Packaging Unit:
1
Catalog page:
1131
