Part Description

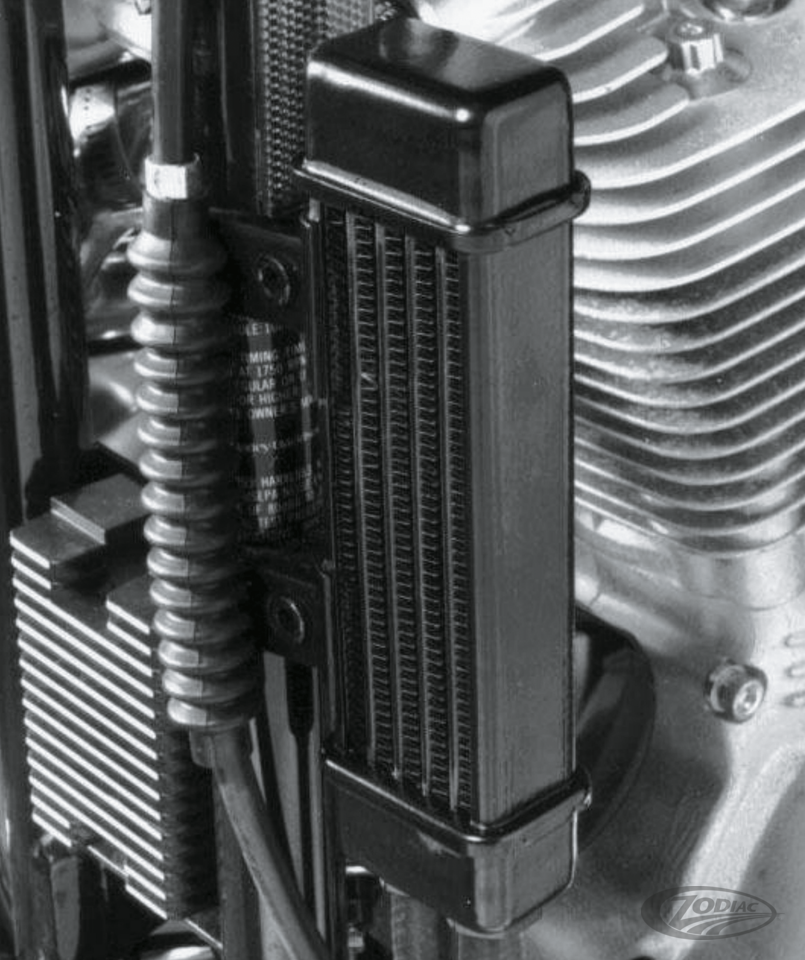

Vertical mount, fits 1957-2022 XL Sportster, 1955-1964 Panhead, 1965-1984 Shovelhead, 1982-2000 FXR, 1984-2017 Softail, 1984-2016 Touring & 1991-2017 Dyna, Black
Text excerpt from the catalog:

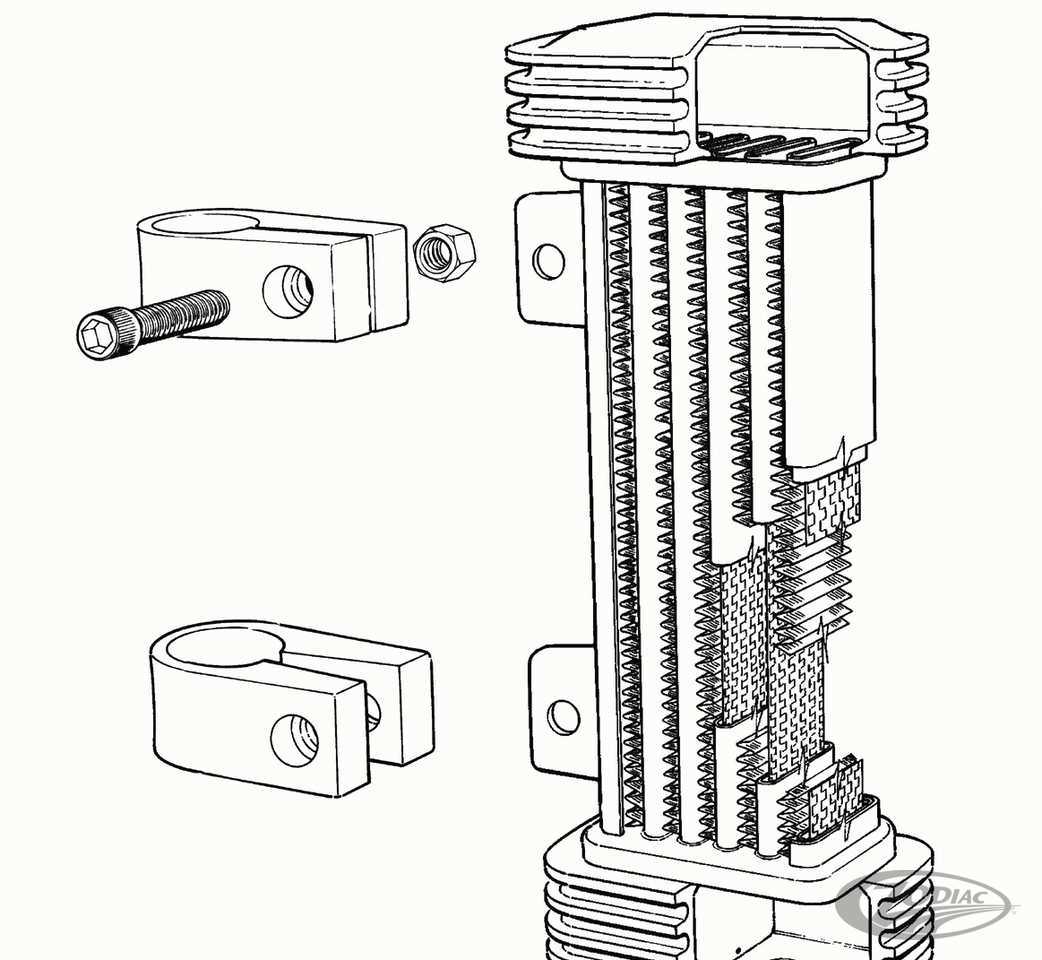

JAGG designed oil coolers provide simple and effective reduction of oil temperature to safe operating levels for maximum life of both oil and engine. Unless otherwise noted Jagg designed oil coolers come complete with hardware and easy-to-follow installation instructions. Specially designed turbulators in each oil passageway gently stir oil, exposing it to more critical heat dissipation surface area for superior cooling with no increase in oil pressure restriction. Additionally, highly concentrated mini-louvered air fins allow maximum heat transfer. Sleek High-Tech Uralite clamps insure trouble free mounting and cooler insulation from vibration. Note: Installation on Twin Cam requires use of ZPN 740085 Offset Oil Filter Adapter to access oil supply for cooler installation. The use of a ZPN 740095 Anti-Rotation device is recommended. Note: Installation on 2004-2022 XL Sportster requires use of ZPN 740225 Oil Filter Adapter to access oil supply for cooler installation.
