Part Description

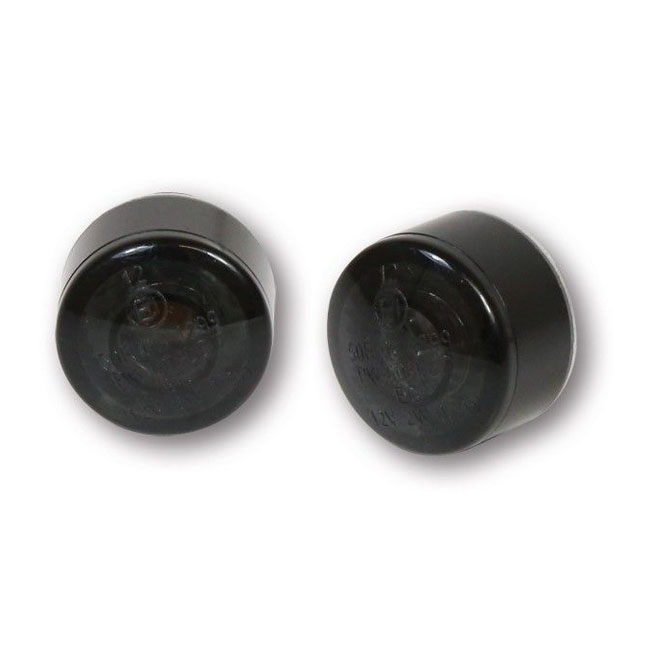

Apollo miniature round smd LED taillight/turn signal combo
Smoke lens. Miniature lights with 2 super bright SMD LEDs and a smoke ECE approved lenses. Plastic construction with a black anodized aluminum ring that fits over the body. Dimensions: A1 = 13 mm, A2 = 9 mm, D1 = 22 mm. D2 = 20 mm. The threaded bolt on the rear is M8 x 12mm. Yellow wire = taillight, red wire = brake light, blue wire = turn signal, black wire = ground. Note: Installes in a 8mm mount hole. Alternatively Apollo lights can be flush-installed in a 20mm diameter hole, when the aluminum 'body ring' is removed, so just the lens is visible. Note: An optional steel housing, for more installation options, is separately available as 922198.
