Fitments
18-20 FLHC Heritage Classic 107; 18-24 FLHCS Heritage Classic 114; 18-20 FLDE Deluxe 107; 18-20 FXDR 107; 18-20 FXLR Lowrider 107; 20-21 FXLRS Lowrider S 114; 22-24 FXLRS Low Rider S 117; 22-24 FXLRST Low Rider ST 117; 2022 FXRST Low Rider El Diablo 117
Part Description

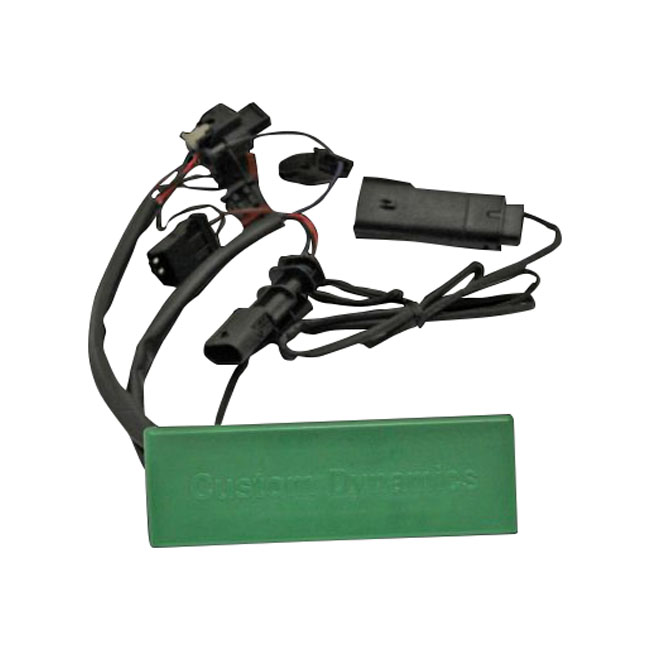

Custom Dynamics, 'Smart Triple Play' unit. M8 Softail
Plug & play installation. For models with center rear taillight. Converts rear (1156 bulb) turn signals to run-brake-turn function. With built-in 'heatless' load equalizer, works with LEDs or incandescent bulbs. Choice from 10 user selectable built in brake light strobe/flash Patterns (user can also select no strobe/flash on brake). Ability to apply brake strobe/flash patterns on center taillight only, rear turns only, or rear turns & center taillight. The 'SMART Function': If brake strobe/flash is turned on, strobe/flashing will be paused on turn signal if simultaneous braking and turning. Includes 10 user selectable running light intensities to match intensity of the center taillight. Built in short circuit protected. Sealed in a weather tight case. Slim line design Dimension: 4.2" (10.7cm) x 1.4" (3.6cm) x 0.6" (1.5cm). Note: Rear turn signals must be converted to red color for DOT compliance. Note that red is not EU compliant.
