Part Description

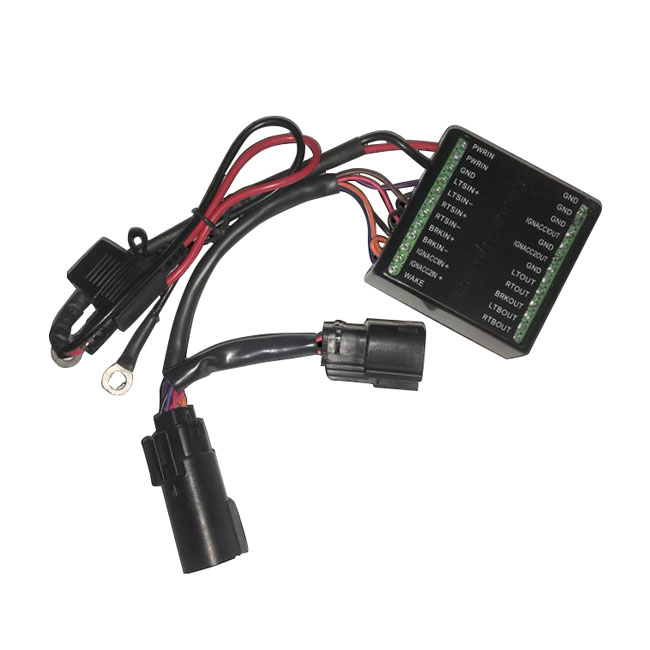

Custom Dynamics, Dynamic Load Isolator. Touring

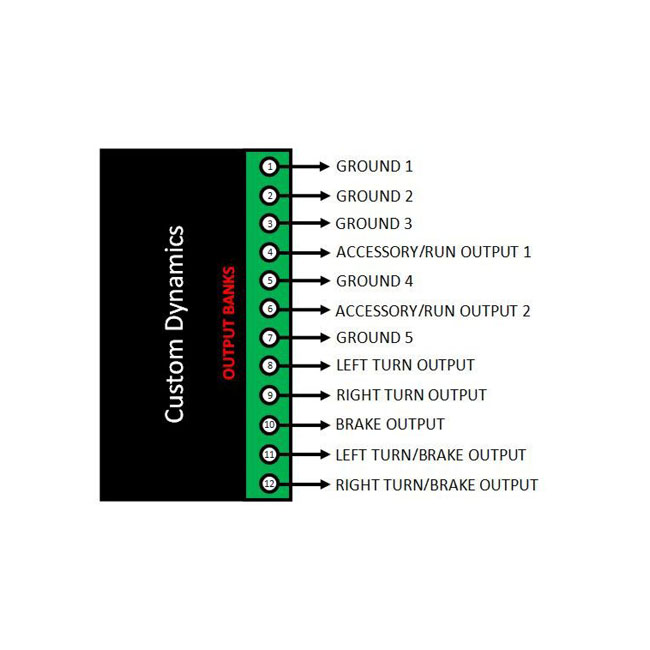

This DLI (Dynamic Load Isolator) is used to electronically isolate the motorcycle's electronic monitoring systems. Triggering BCM fault codes from custom non-compliant aftermarket lighting and electrical accessories is a thing of the past and short circuits in custom accessories can no longer damage the bike's electronics when connected to the DLI outputs. Factory warranty is preserved. Output banks include 5 separate grounds, 2 accessory/run outputs, left turn signal output, right turn signal output, brake output, integrated right turn/brake output, and integrated left turn/brake output. - Plug & Play installation - Terminal connectors for battery hook-up - Isolates OEM BCM (Body Control Module) to prevent triggering trouble codes and damage to bike from using aftermarket products - Provides outputs for aftermarket lighting and electrical accessories - Works with LED or regular (incandescent) bulbs - Optional 4-pin trailer harness - 30 Amp total maximum output capacity - 5 Amp per output, 10 Amp per accessory output - 4 way hazard light compatible - Dimensions: 2.5" (63.5mm) x 2.5" (63.5mm) x 0.75" (19mm)
