Part Description

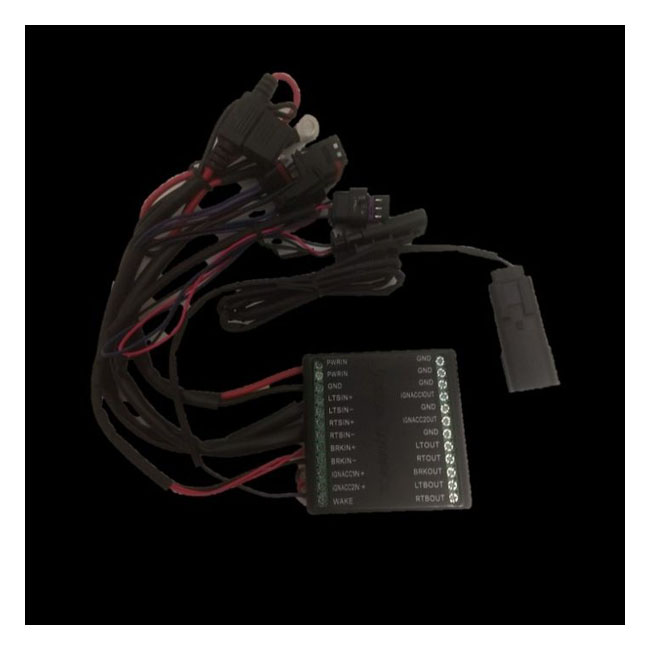

Custom Dynamics, Dynamic Load Isolator. M8 Softail

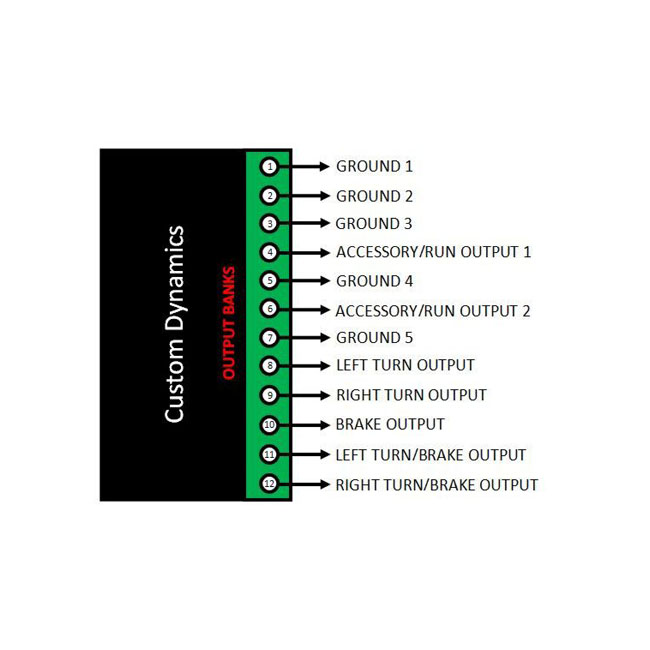

This DLI (Dynamic Load Isolator) is used to electronically isolate the motorcycle's electronic monitoring systems. Triggering BCM fault codes from custom non-compliant aftermarket lighting and electrical accessories is a thing of the past and short circuits in custom accessories can no longer damage the bike's electronics when connected to the DLI outputs. Factory warranty is preserved. Output banks include 5 separate grounds, 2 accessory/run outputs, left turn signal output, right turn signal output, brake output, integrated right turn/brake output, and integrated left turn/brake output. - Plug & Play installation - Terminal connectors for battery hook-up - Isolates OEM BCM (Body Control Module) to prevent triggering trouble codes and damage to bike from using aftermarket products - Provides outputs for aftermarket lighting and electrical accessories - Works with LED or regular (incandescent) bulbs - Optional 4-pin trailer harness - 30 Amp total maximum output capacity - 5 Amp per output, 10 Amp per accessory output - 4 way hazard light compatible - Dimensions: 2.5" (63.5mm) x 2.5" (63.5mm) x 0.75" (19mm)
