Fitments
86-22 XL883 (883 to 1200 conversion)
Part Description

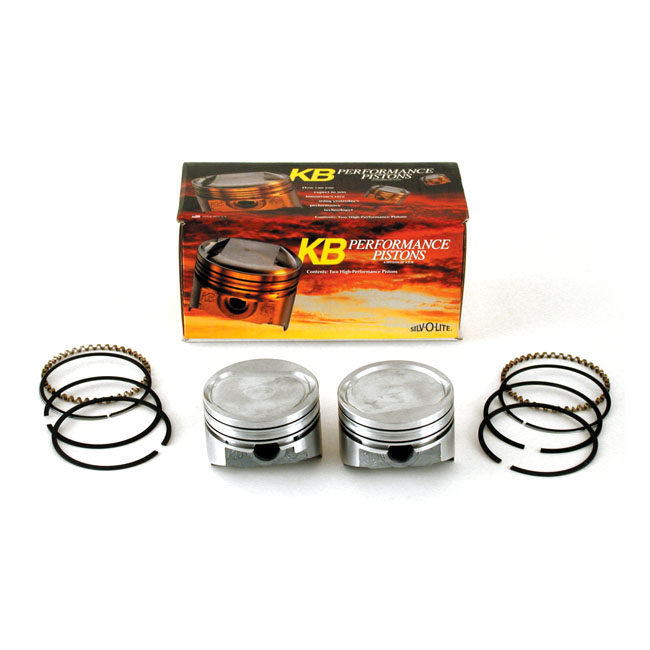

KB Performance, 883-1200 big bore piston kit. +.005"
High compression. 883-1200 conversion piston set. Compatible with stock unmodified cylinder heads. 10:1 Compression ratio. Piston weight 335gr. Piston pin diameter .792" and weight 97gr. Head type: Dish. Dome +10cc. Compression height 1.210". Bore 3.498". Stroke 3.812". Rod length 6.926". Cyl. length 4.650". Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise. Note: Top compression ring will need additional clearance. See instructions. Note: 1200cc cylinders must be purchased for 04-up 883 XL models. Stock cylinders liners of 04-up XL models are too thin to bore to 1200 size.
