944659 - KB Performance, 1340cc Evo B.T. piston kit. STD

NOTE: The images shown are for reference only, the actual product may differ.
Therefore please always read the description or read on the corresponding catalog page.

Enlarge article image

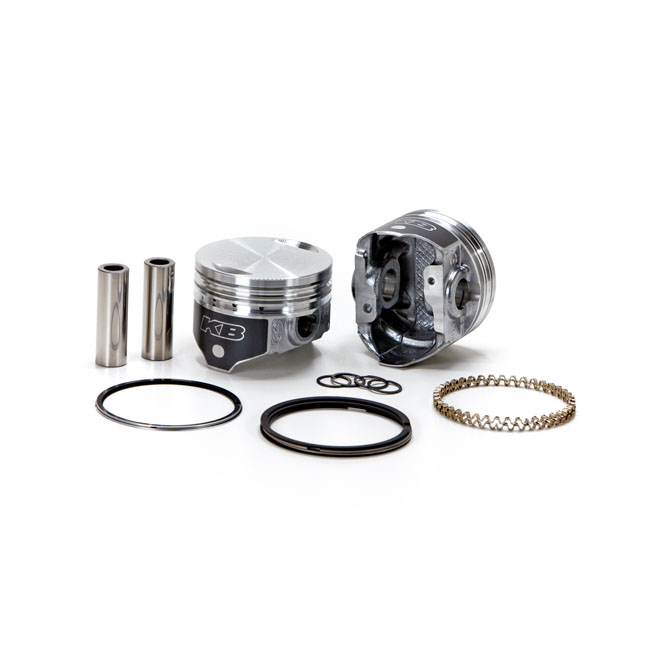

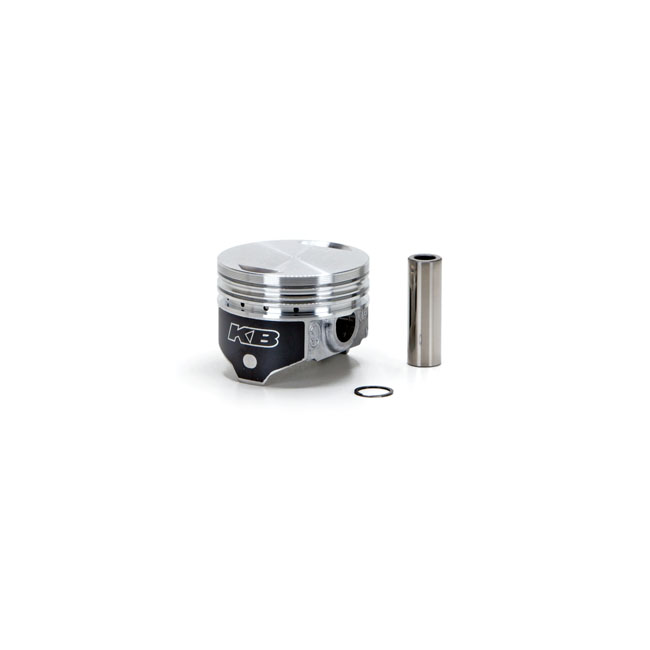

KB Performance, 1340cc Evo B.T. piston kit. STD

Article-No.: 944659
261,22 €

Fitments

84-99 1340cc Evo Big Twin (NU)

Part Description

KB Performance, 1340cc Evo B.T. piston kit. STD

8.5:1 CR. Piston weight 350gr. Piston pin weight 97gr. Head type: Flat top. Dome +1.5cc. Compression height 1.375". Bore 3.4980". Stroke 4.250" (4-1/4"). Rod length 7.440". Cyl. length 5.550". Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise. Note: Top compression ring will need additional clearance. See instructions.

Spezification

Article-No.:
944659
Manufacturer/Distribution:
KB PISTONS / Motorcycle Storehouse
Packaging Unit:
SET
Catalog page:
673
