Part Description

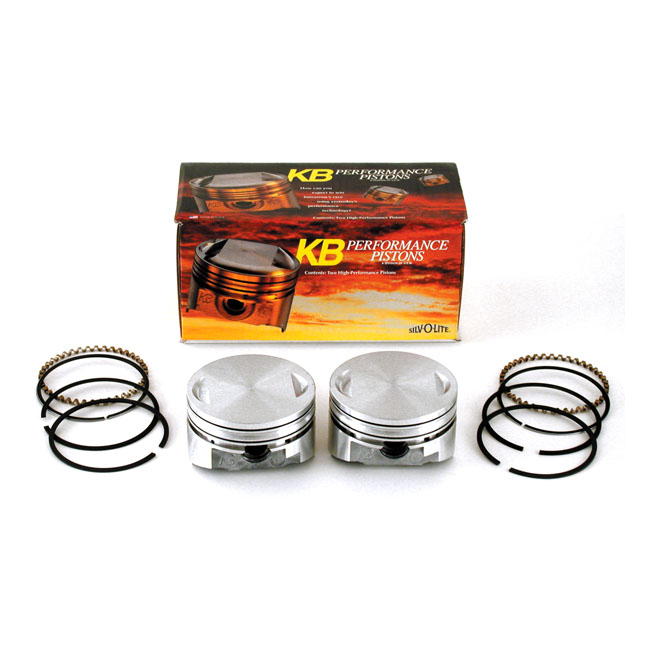

KB Performance, 88" to 95" big bore piston set. +.010"
88" to 95" big bore conversion kit. Used with stock heads and cylinders, 3-3/4" bore and 4.938" long cylinders. By boring the stock cylinders to the 3-7/8" big bore size you will increase engine capacity from 88" (1448cc) to 95" (1546cc). 9.25:1 CR. Piston weight 400gr. Piston pin weight 97gr. / Head type: Flat top. Dome +16.7cc / Compression height 1.270". Bore 3.875" (3-7/8") / Stroke 4.000". Rod length 7.667" / Cyl. length 4.938". Comes with T6 heat treated 390 Hypereutectic cast pistons with 16% silicone levels which enables running a very tight clearance for longevity and hardly any piston noise. Note: Top compression ring will need additional clearance. See instructions.
