954136 - Axel Joost Elektronik, B-Box brain box

NOTE: The images shown are for reference only, the actual product may differ.
Therefore please always read the description or read on the corresponding catalog page.

Enlarge article image    Enlarge article image    Enlarge article image    Enlarge article image    Enlarge article image

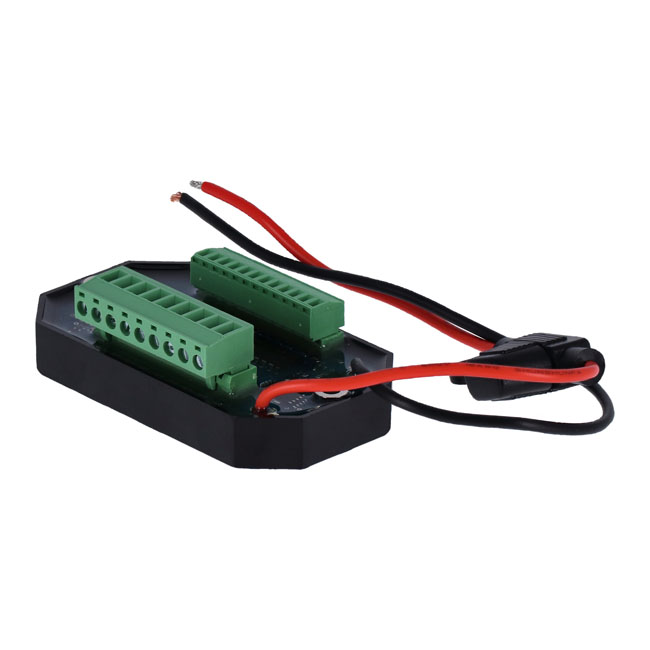

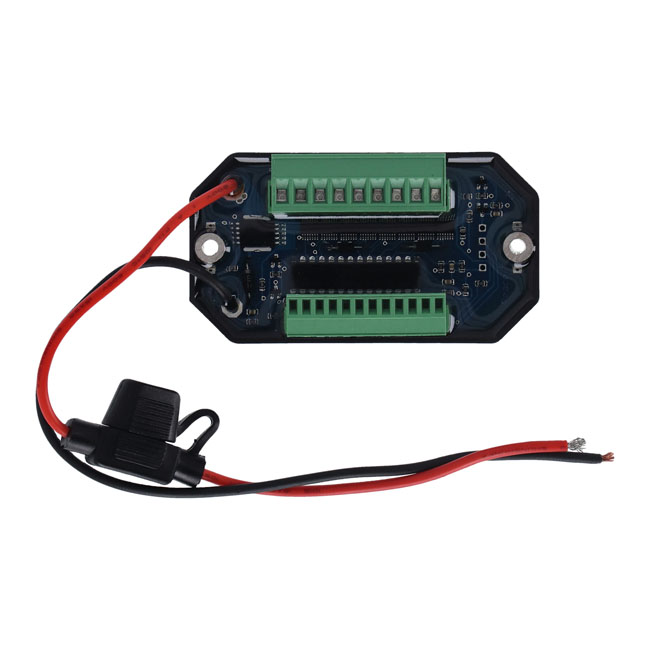

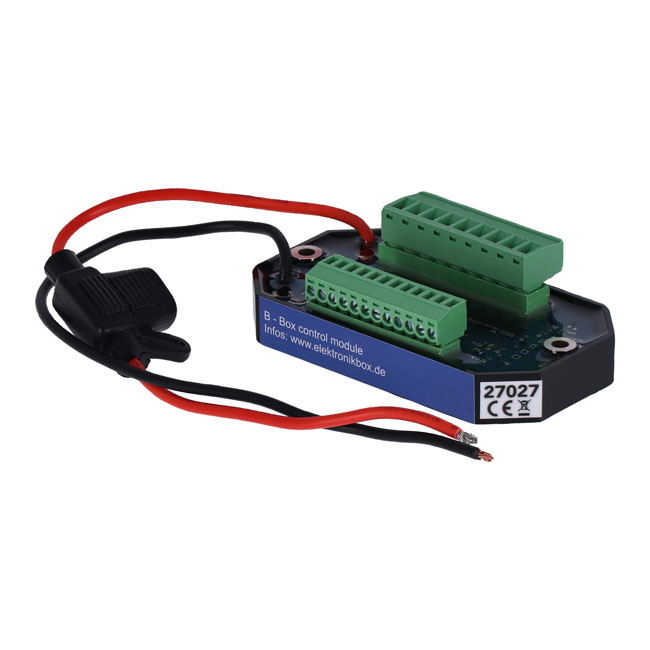

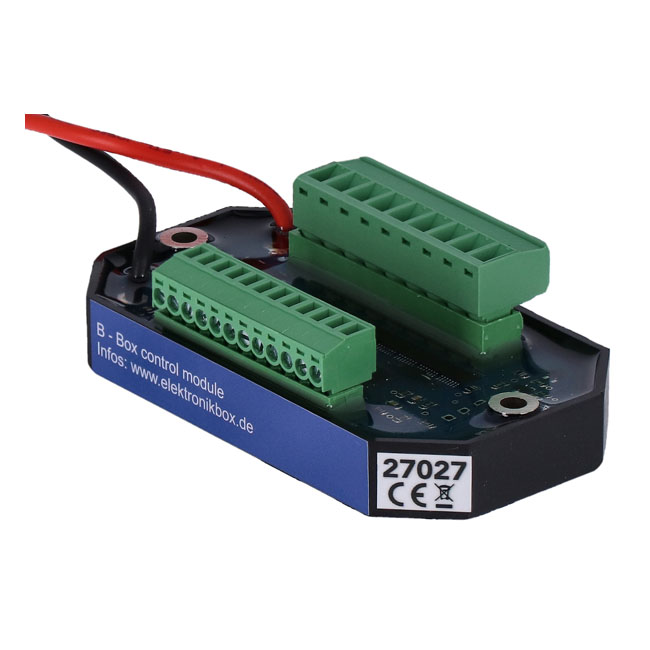

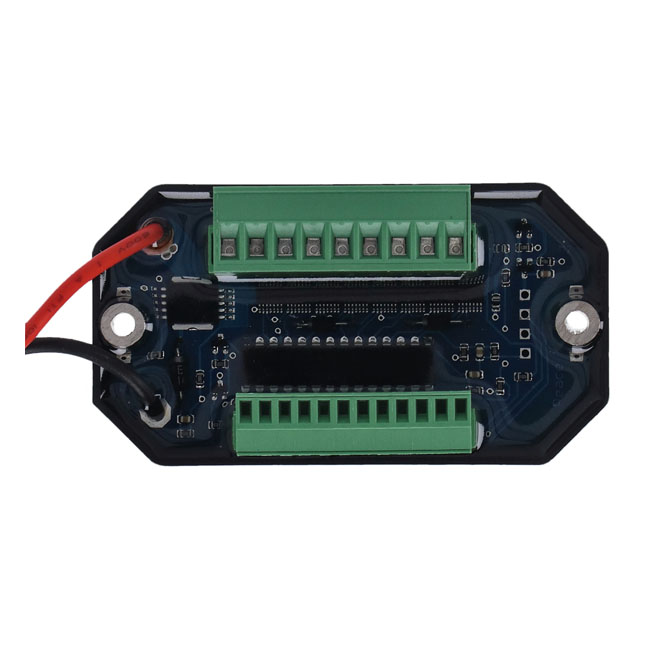

Axel Joost Elektronik, B-Box brain box

Article-No.: 954136
213,98 €

Part Description

Axel Joost Elektronik, B-Box brain box

Controlbox (Box-B brain box) with screw connectors. Perfect if sufficient room is available and a quick wiring installation is required. Functions: - Ignition (with or without side stand switch control) via the ignition switch - Switch output, for parking light etc. - Starter (with or without neutral switch control) - Headlamp with button or switch control - Turn signal relay, controlled with buttons or switches - Brake light with selectable flasher function - Horn - Dimensions: 92 mm x 50 mm x 36 mm including connector terminals - Body material: shock resistant ABS plastic, waterproof poured resin - Case Color: Black - Main connections: 2.5 qmm - Power consumption in standby: About 0.2 mA - Maximum ambient temperature: 80 degree Celsius - Maximum output current: 5 Ampere / output - Input voltage range: 7 - 18 Volt - Maximum current / Box: 20 Ampere.

Spezification

Article-No.:
954136
Manufacturer/Distribution:
Axel Joost Elektronik / Motorcycle Storehouse
Packaging Unit:
1
Catalog page:
1215
