Part Description

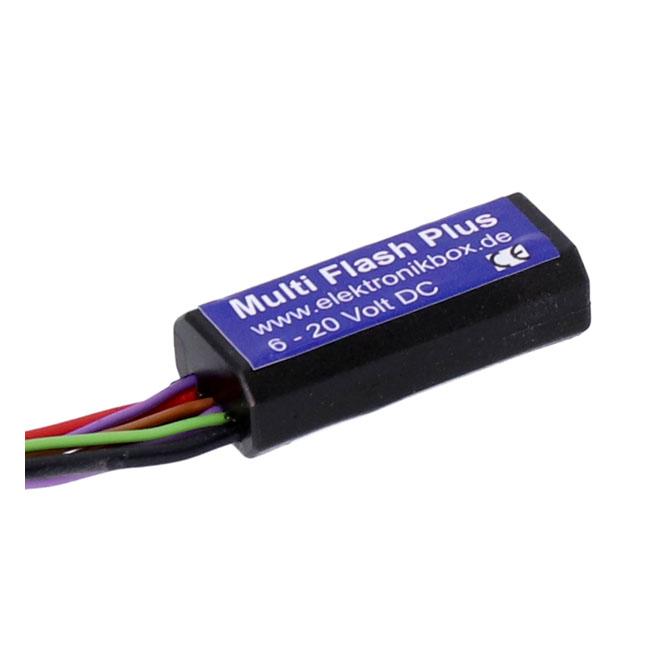

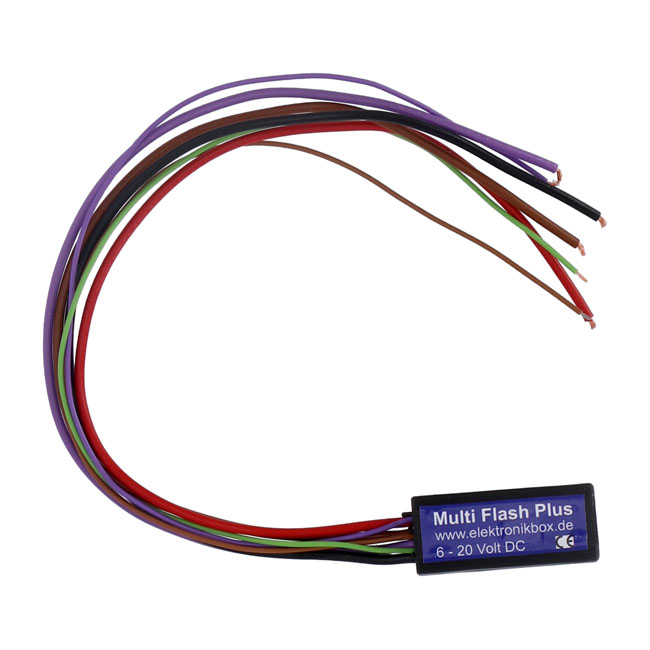

Axel Joost Elektronik, Multi Flash Plus
This turn signal relay module controls the turn signals via push buttons to plus 12-volt, all other Axle Joost turn signal modules switch to ground. An auto cancel function can be activated to automatically switches off the turn signal after 4 seconds, 30 seconds or to let it flash without time limit. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Maximum output power: 40 Watt / Output - Maximum ambience temperature: 80 degree Celsius - Auto cancel after 4 flashes, or 30sec flashing, or flashing without time limit. Depending on how long switch is pressed - Compatible with LED / regular bulbs
