Part Description

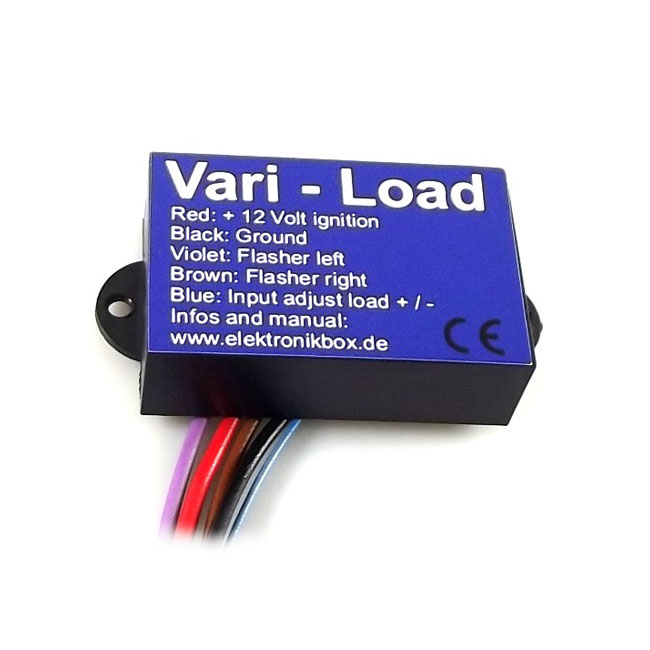

Axel Joost Elektronik, 'Vari Load' adjustable load equalizer
Digital 50-step adjustable load equalizer. It is simply connected to the turn signals. The load is 50-step variable by touching the 'programming cable' to ground (less load) or to positive +12V (more load), after which it is automatically saved. This will make this set-up compatible with any requirement of the bike to prevent the ECU triggering trouble codes or any issue with the OEM turn signal relay. - Dimensions: 56 mm x 37 mm x 17 mm - Body material: ABS waterproof molded - Input voltage range: 7 - 18 Volt - Connections: Inputs 0,14 mm², Outputs 0,75 qmm - Output power range: Between 2 x 1 Watt and 2 x 15 Watt - Maximum ambience temperature: 80 degree Celsius. Note: This module should be used with turn signals that pull a maximum of 10W total. Note: The Vari Load can also be used as a tool in the workshop. You can adjust to required load value with the Vari Load on a customer's bike. Then you will then know what resistor to use for that specific application. A printed table with resistors is listed the manual.
