Part Description

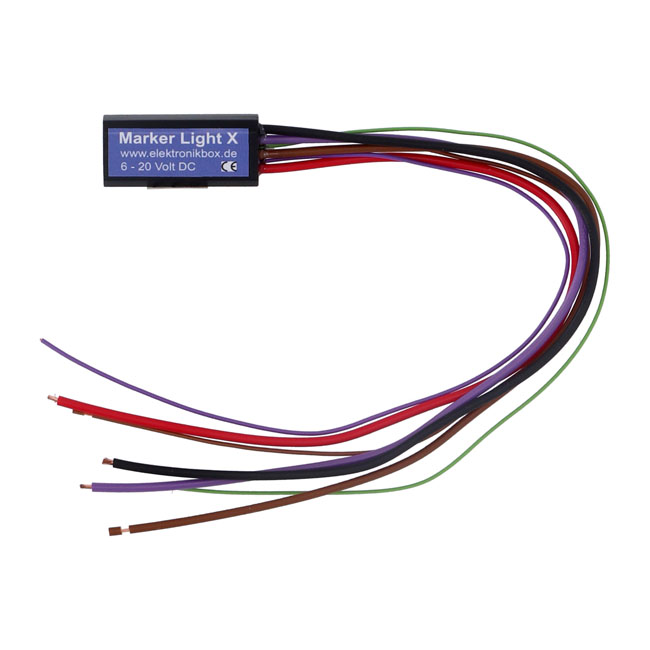

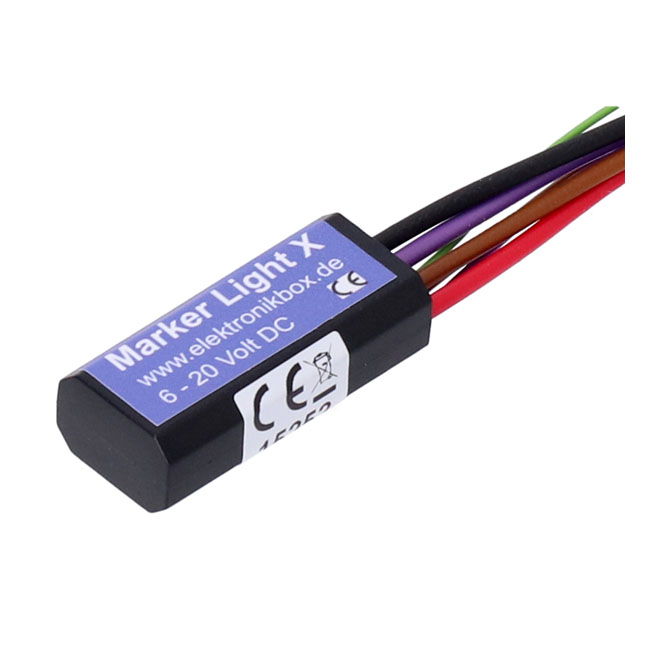

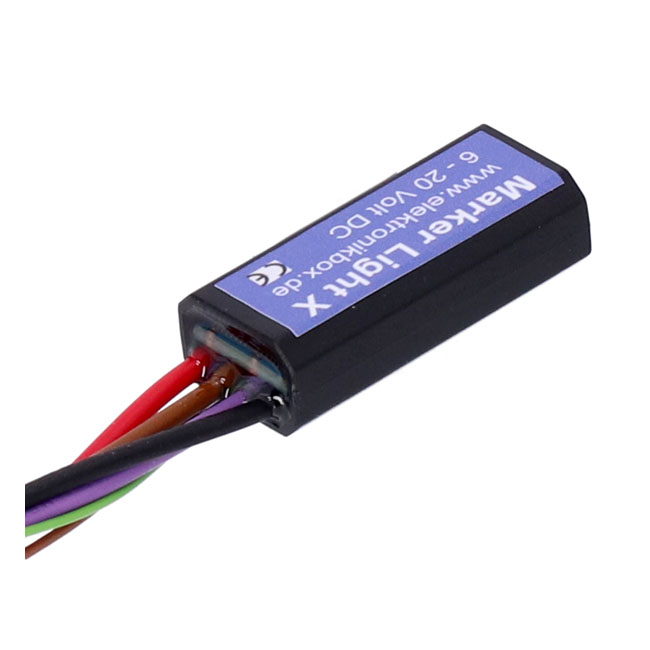

Axel Joost Elektronik, Marker light X

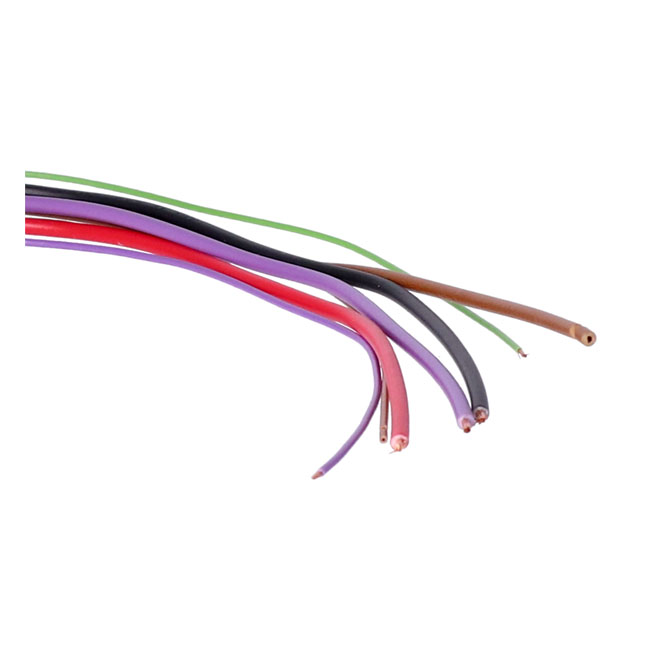

This module is used to automatically switch off a light, like a marker light or turn signal daylight running light (DRL), for better visibility of the turn signal during daytime. The module is very small and can be installed almost anywhere, including inside most handlebars. The module can also be used to cancel the marker/running light function of the turn signals. - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 7 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Maximum current: 5 Ampere per output - Maximum ambient temperature: 80 degree Celsius
