Fitments
08-13 H-D with e-throttle (NU)
Part Description

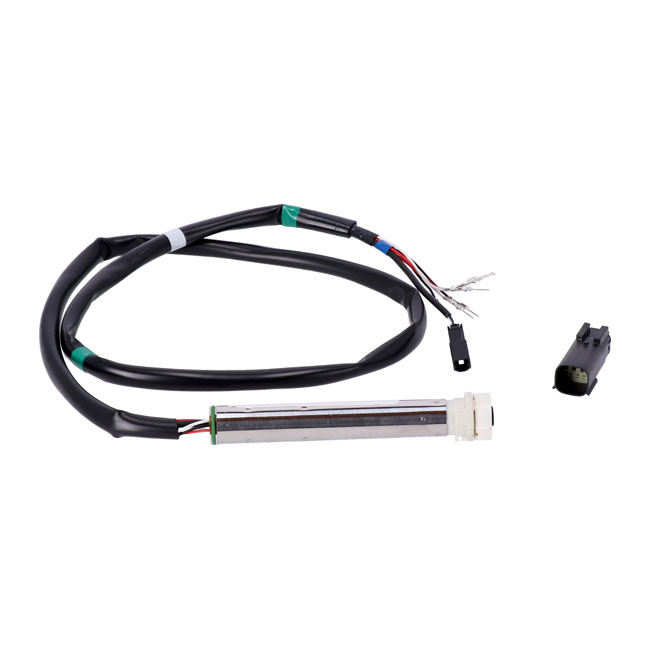

Namz, twist grip sensor for Throttle-by-Wire models

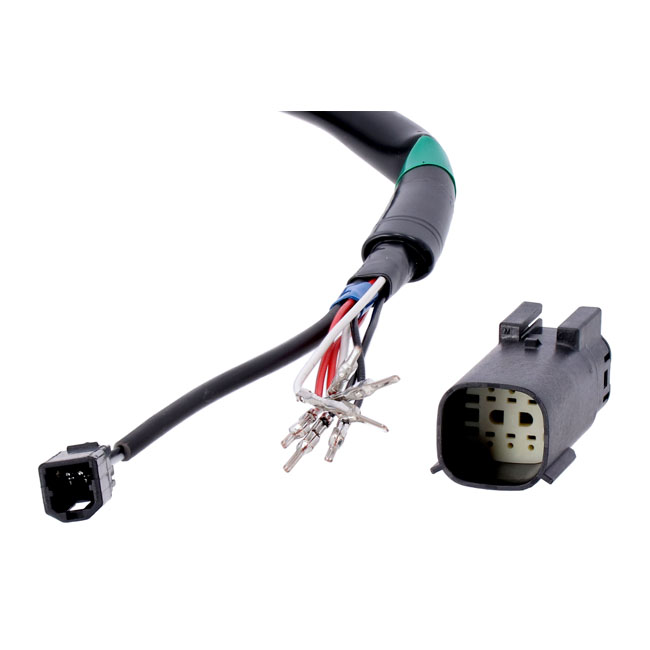

Plug & play replacement throttle sensor for models with e-throttle (electronic throttle). - Hardwired like OEM CVO versions from the sensor to the main connection on the harness - Terminals are pre-installed using MIL-SPEC crimping presses - Includes OEM (HD# 72188-07BK) male 6-position connector for installation after the harness is routed through the handlebar - Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection - NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage - The male connector is NOT installed so you can fish the wiring harness through your handlebar - Connector Pinout: 1 (black), 2 (white), 3 (red), (Blue tape around bundle) 4 (black), (Blue tape around bundle) 5 (white), (Blue tape around bundle) 6 (red).
