Part Description

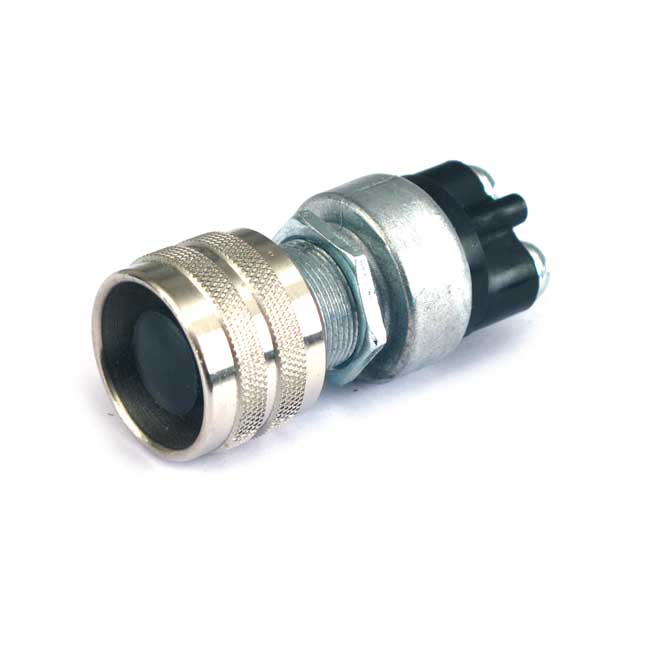

Switch, push button starter. Heavy Duty. 60A@12V
With accidental start-protection collar. Momentary on-off push button starter switch. With a round zinc die-cast housing with silver contacts, flush terminals in a molded insulator, a housing that is rolled over the insulator to seal out dust and moisture. Dimensions are approx. and for reference only: Mounting stem 5⁄8" (15.9mnm) long, 5⁄8" (15.9mm) diameter thread, overall length 1-13⁄16" (46mm), housing and mounting collar diameter 15⁄16" (23.8mm).
