Part Description

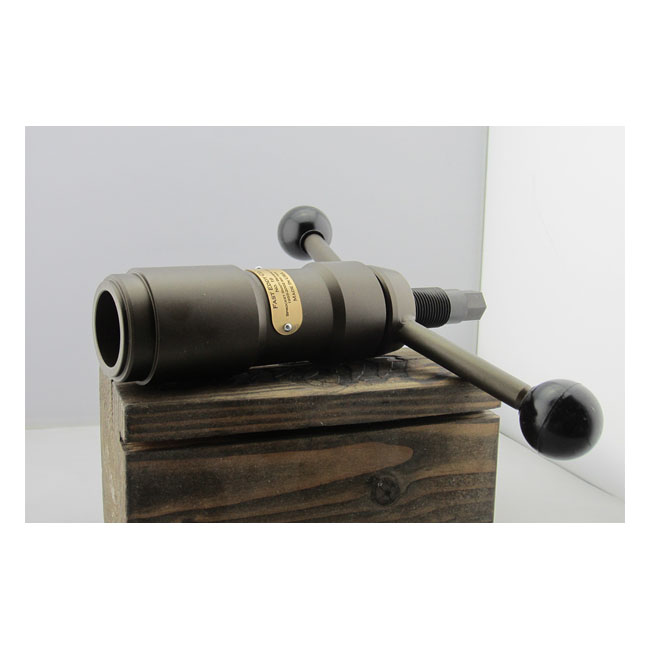

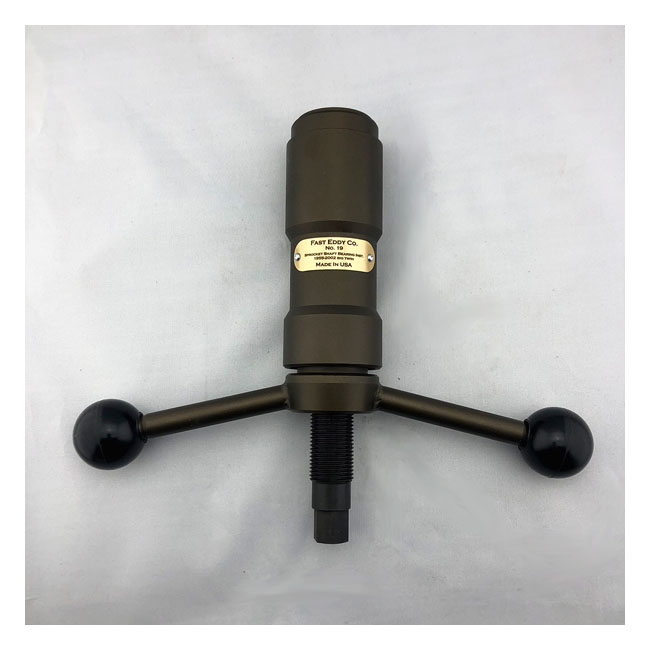

Fast Eddy, sprocket shaft bearing installer & seal adapter

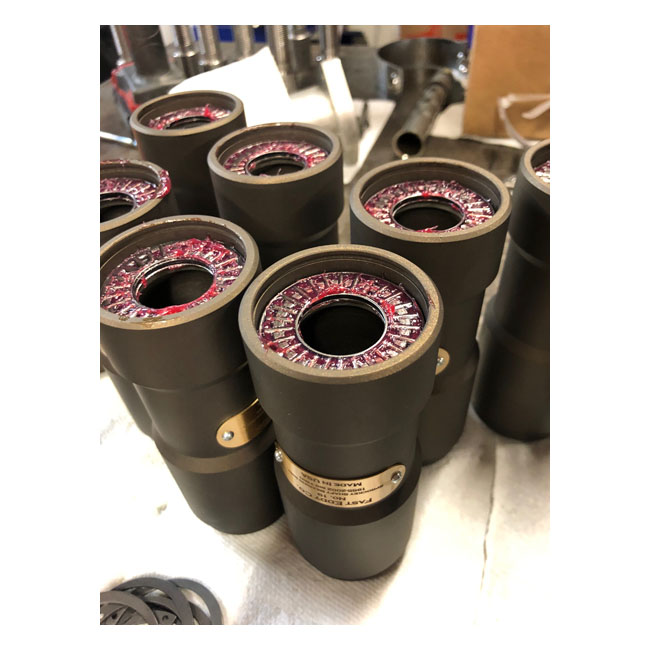

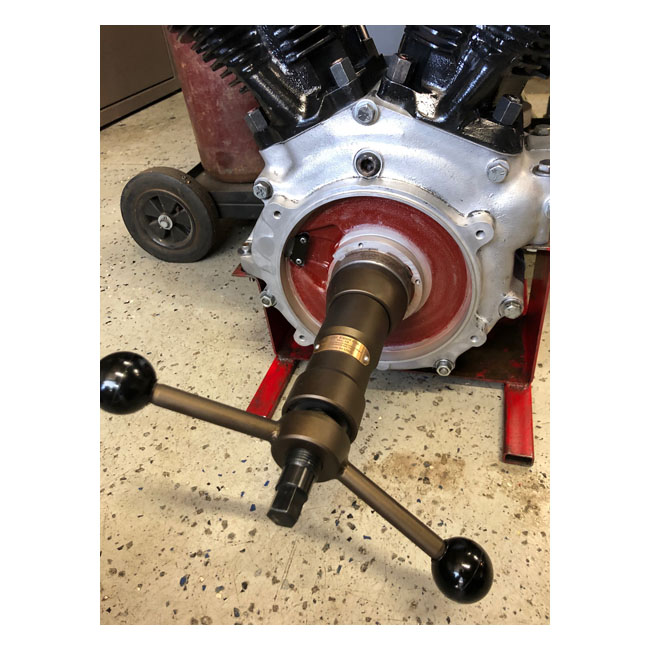

Used for an effortless installation of inner and outer Timken sprocket shaft bearings in the left side crankcase, as well as outside sprocket shaft seal. Designed with a high quality roller-type thrust bearing, which is captive inside the tool body. No loose parts to worry about putting on correctly or misplacing. The handle makes this tool easier to use than competitive versions. Genuine Cerakote coating and 100% made in USA. Note: Comes complete with seal adapter, which presses in your sprocket shaft seal straight and true for a leak-free fit. - Step 1: Using tool, press inner bearing onto flywheel (sprocket shaft) - Step 2: Place crankcase over flywheel assembly - Step 3: Slide new inner bearing spacer onto sprocket shaft - Step 4: Using tool, press outer bearing onto flywheel (sprocket shaft) - Step 5: Using tool with optional seal adapter, press seal & outer spacer into crankcase. Installation notes: When using new bearings, be sure to use the NEW inner and outer spacer that came with the new matched set of bearings. This will ensure the bearing endplay is correct.
