Fitments
Rear: 11-22 XL Sportster; 08-12 XR1200; 16-20 XG Street (NU)
Part Description

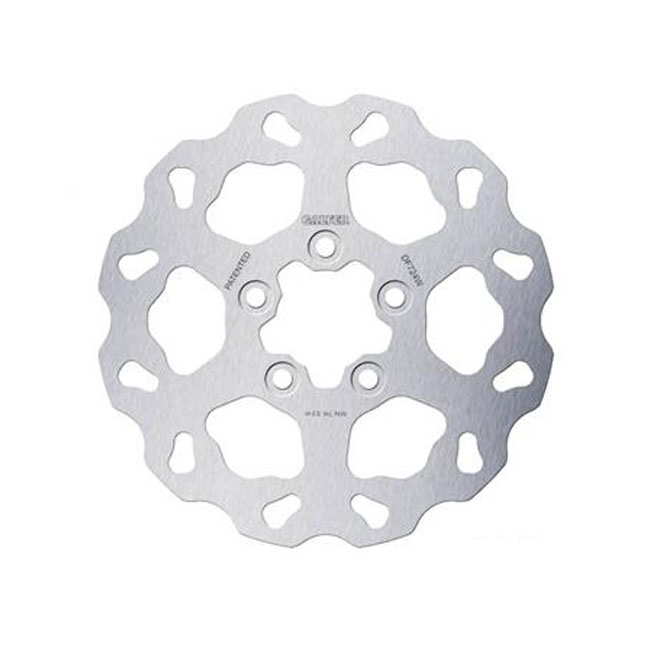

Galfer brake rotor. Wave. Fixed. 260x6mm
260mm (10.2") OD, 6mm thick, 56mm ID, 8mm (5/16") counterbored mount holes, 3.25" BCD (Bolt Circle Diameter). Mount style B. OEM replacement reference 41833-08, 41500123. Galfer Disc Wave® discs are the most popular. Thanks to their larger brake track perimeter, they enhance cooling capacity and allow for even wear of the brake pads. They undergo a cathodic electrocoating treatment to prevent corrosion. In the case of floating discs, they offer an improvement in weight reduction, and there are two variants: those with a high-strength anodized aluminum center (7075 T6 - 6082 T6) and those with a steel core (AISI 420).
