Fitments
Front: 11-17 FXDWG Dyna Wide Glide; 14-17 FXDL Dyna Low Rider; 12-16 FLD Switchback; 15-23 FLTRX Road Glide; 15-23 FLTRXS Road Glide Special; 09-17 VRSCF Muscle V-Rod; 2012 VRSCDX Anniversary V-Rod. Models with open center 6.7 Bolt Circle Diameter (NU)
Part Description

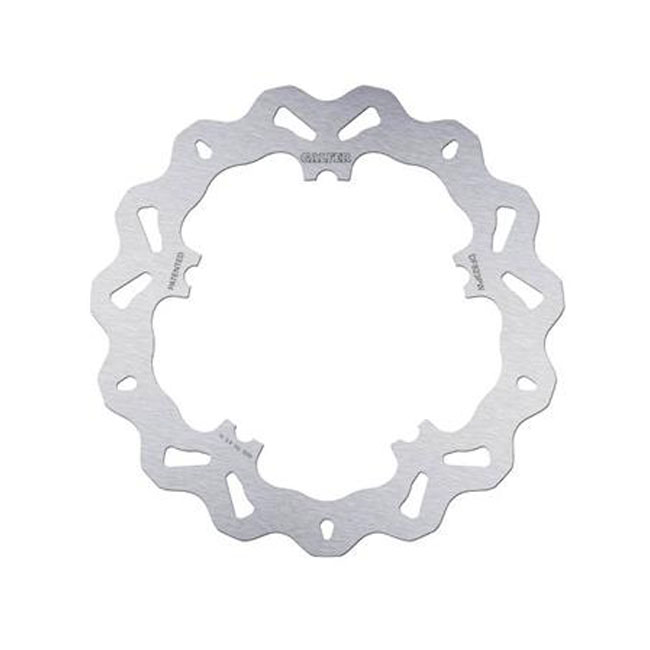

Galfer brake rotor. Track Wave. 300x5mm
300mm (11.8") OD. 5mm thick. Open center. 'Half moon' bolt style holes. 6.7 BCD. Mount style 'D'. OEM replacement reference 46717-10. Note: All Galfer brake rotor designs are symmetrical. This allows left or right side installation without optical issues. Galfer Disc Wave® discs are the most popular. Thanks to their larger brake track perimeter, they enhance cooling capacity and allow for even wear of the brake pads. They undergo a cathodic electrocoating treatment to prevent corrosion. In the case of floating discs, they offer an improvement in weight reduction, and there are two variants: those with a high-strength anodized aluminum center (7075 T6 - 6082 T6) and those with a steel core (AISI 420).
