Part Description

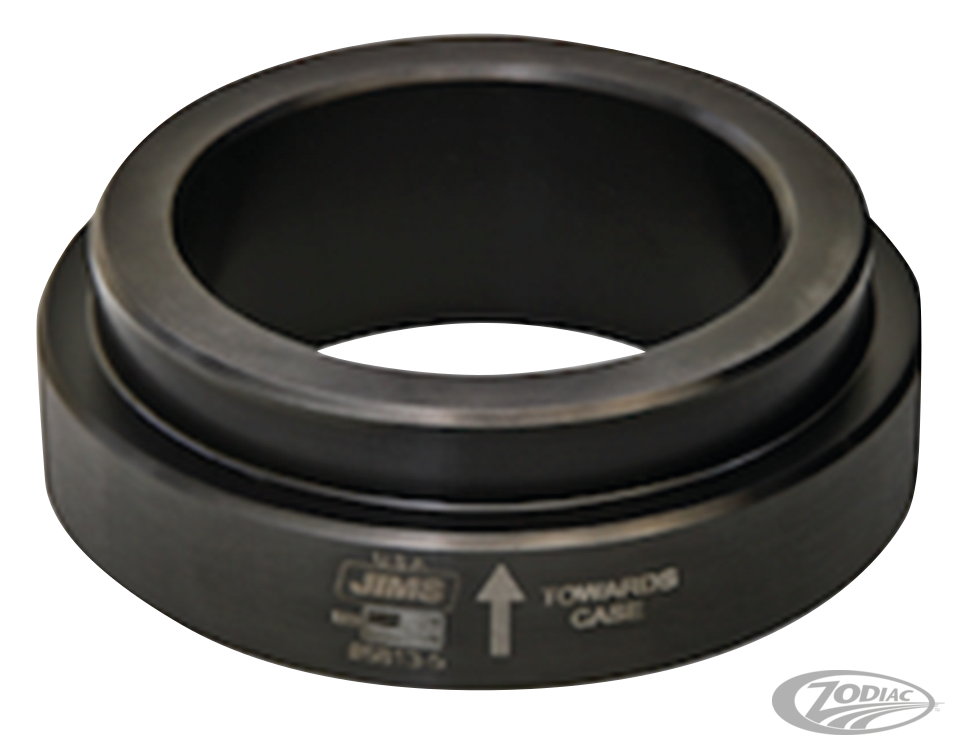

Jims stator adapter for ZPN 753687 main bearing tool
Text excerpt from the catalog:
This adapter for the ZPN 753687 Jims main bearing tool is a simple time and money saver when installing the main bearing on a Milwaukee Eight left side crankcase. Simply position this adapter on top of the bearing support on the press table. When this adapter is used in conjunction with the JIMS® No.5813 main bearing tool, or OE tool, the stator can remain attached to the left side case during bearing installation. The technician will save the time of removing and installing the stator. The adapter has been designed with added clearance for the stator screws, which are one time use only screws. It will also guarantee that the case plug seal of the stator is not compromised resulting in a leak.
